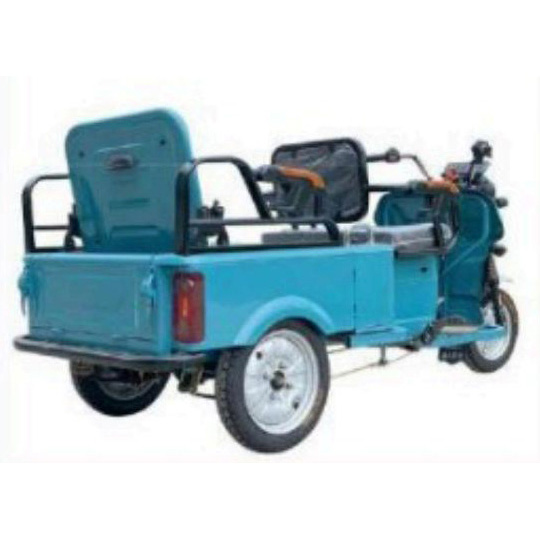

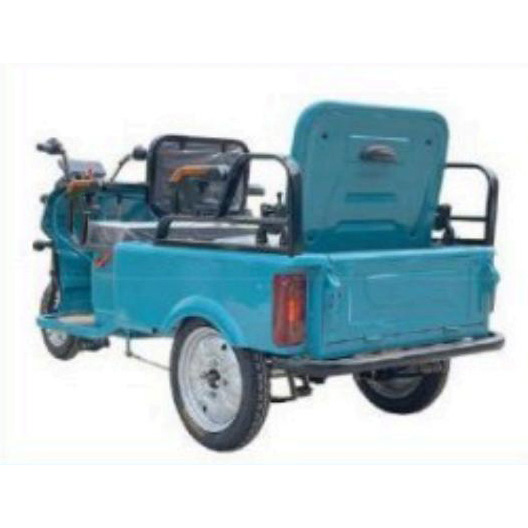

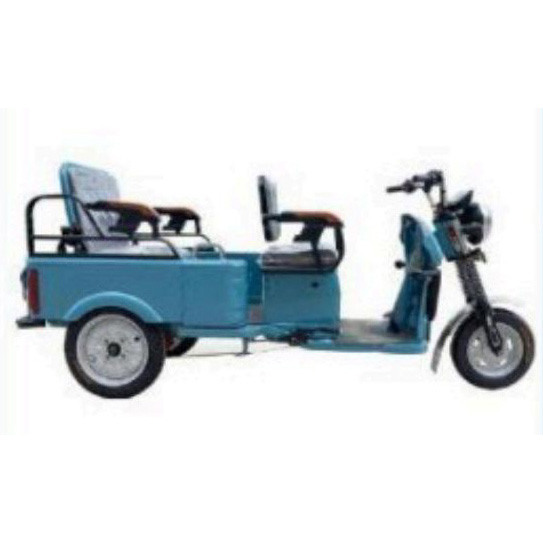

This electric tricycle can accommodate a family of three and is easy to control.
This electric tricycle can accommodate a family of three and is easy to control. It is equipped with high-elastic foam seat cushions and hydraulic shock absorption to improve comfort.
Model | 1m tricycle |
Container quantity | CKD 80sets/40HQ SKD110sets/40HQ |
Vehicle size (length*width*height) | 2330*900*1100mm |
Standard voltage | 60 v |
Controller | 12 tube controller |
Battery Type | Lead acid battery |
Load capacity | 400kg |
Vehicle quality | 130kg (Without battery) |
Front shock absorber | Spring damping composite shock absorber |
Rear shock absorption | Steel plate shock absorption |
Rear axle | 130# |
Carriage structure | Car parts are detachable and easy to assemble |
Car size | 1000*900*360mm |
Tire specifications | Front tire 300-10, Rear tire 300-12 |
Traveling motor power | 650w |
Speed | 30km/h |
Battery capacity | 60v 32ah |
Cruising range | 45km |
Wheelbase | 1550 mm |
Wheelbase | 780mm |
Braking method | Foot brake mechanical parking brake |
Minimum ground clearance | 160mm |
Lamps | Headlight + turn signal + driving light + reversing light |
