It has the characteristics of simple operation and strong practicability, and is widely used in logistics transportation and cargo loading. It plays an important role in urban and rural transportation.
Model | 1.8m cargo tricycle |
Container quantity | CKD 50sets/40HQ SKD40sets/40HQ |
Vehicle size (length*width*height) | 3350*1300*1360mm |
Standard voltage | 72v |
Controller | 18 tube controller |
Battery Type | Lead acid battery |
Load capacity | 1800kg |
Vehicle quality | 280kg (Without battery) |
Front shock absorber | Spring damping composite shock absorber |
Rear shock absorption | Steel plate shock absorption |
Rear axle | 180# One-piece suspension |

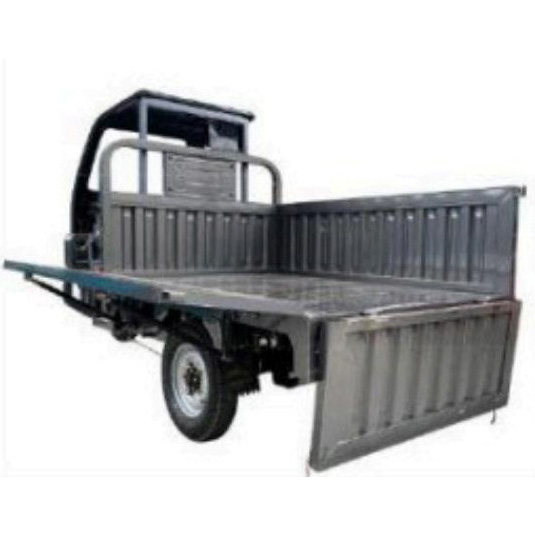

Carriage structure | Car parts are detachable and easy to assemble |
Car size | 1800*1300*450mm |
Tire specifications | Front tire 400-12, Rear tire 450-12 |
Traveling motor power | 1800w |
Speed | 50 km/h |
Battery capacity | 72v 58ah |
Cruising range | 80km |
Wheelbase | 2270 mm |
Wheelbase | 1230 mm |
Braking method | Foot brake / mechanical parking brake |
Minimum ground clearance | 200 mm |
Lamps | Headlight + turn signal + driving light + reversing light |
